What Are Cantilever Decks and the Rules for Overhangs?

For me, building a deck is all about balancing structural integrity with great design, and cantilever decks take that to the next level. Their overhangs add more usable space—and produce a gravity-defying appearance. I see this design gaining popularity for maximizing space while delivering a clean, modern look. The cantilever design is impressive but requires careful structural planning to ensure long-term stability. Here, I’ll share what I’ve learned over the years: successful cantilever deck project.

What Is a Cantilever Deck?

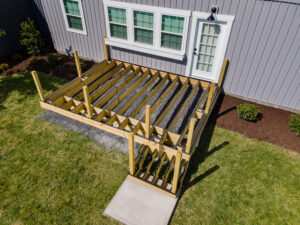

A cantilever deck extends beyond its last supporting beam, creating an overhang without additional footings or posts. Instead of relying on vertical supports, the joists extend past the last beam to safely distribute weight.

Cantilever decks offer both functional and aesthetic benefits, making them a versatile choice for outdoor spaces. The floating design is often used to complement contemporary and minimalist architecture. However, I’ve seen cantilever decks seamlessly incorporated into rustic cabins, traditional homes, and even historic renovations where minimizing visible supports was a priority.

Here are some common cantilever deck applications:

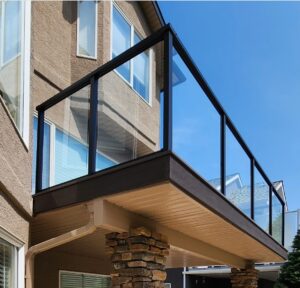

• Overhanging balconies: The floating appearance of a cantilever creates an open design without visible supports disrupting the view.
• Decks over sloped or uneven ground: When building on uneven terrain, a cantilever allows the deck to extend outward without requiring additional posts or footings, simplifying construction.
• Maximizing space within property limits: While decks cannot extend past property lines, cantilevering pushes usable space closer to the boundary while keeping the main structure compliant. This can be especially valuable for urban or compact lots.

Advantages of Cantilever Decks

Cantilever decks are a popular choice among homeowners and builders. Extending past the last support beam without added footings maximizes functional outdoor space while allowing for a clean, modern design. This makes them especially useful when traditional post-supported designs are impractical.

The top advantages of cantilever decks are:

• More Usable Space – An overhang provides extra deck space for furniture, grills, and entertaining.
• No Additional Footings – Because a cantilever extends beyond its last support beam, there’s no need to dig and install more footings or posts for the overhanging section, simplifying construction.
• Enhanced Aesthetics – A cantilever creates a visually appealing, floating effect that complements contemporary homes and multi-level outdoor spaces especially well.
• Reduced Material Costs – Using existing joists instead of additional posts and footings can lower material costs, although the savings depend on the cantilever length and the materials used.

These advantages make cantilever decks a strong option when blending style with functionality. But how do they compare to other deck styles?

Cantilever Comparison with Other Deck Designs

Rules and Guidelines for Overhangs

The key to a safe and functional cantilever deck is proper engineering and compliance with structural limits. The longer the overhang, the more stress it places on the joists, fasteners, and connection points, increasing the risk of sagging or failure. That’s why building codes and span tables must be followed when designing one.

The International Residential Code (IRC) provides general guidance but always check local building codes and manufacturer specifications for exact requirements. Here are the basic rules:

Joist Cantilevering Limits

Typically, a deck joist can cantilever from one-third to one-fourth of its total length. The exact limits depend on wood species, joist size, and spacing. For example, a 12-foot-long 2×10 joist might be allowed to cantilever between 3 and 4 feet—but always check span tables or local codes to confirm the allowable length.

Joists must also extend back into the deck at least twice the cantilever length to ensure stability. This back-span requirement helps counterbalance the overhang and prevents excessive deflection or uplift.

Beam Cantilevering Limit

Beams can also cantilever beyond their supporting posts, but this is less common. The allowable length varies based on the beam material, span, and load conditions and typically requires engineering approval if extending significantly beyond support points.

Material Strength

Not all decking materials allow the same overhang distances; different wood species, grades, and composite materials have varying load capacities that affect how far they can safely extend.

Pro Tip: Composite decking may have stricter cantilever limits than wood, so I always check manufacturer specs and local codes before finalizing a design. While wood decking usually follows the standard “1/4 rule,” some composite brands require shorter joist cantilevers due to increased flex.

Secure Fastening

A cantilever deck relies on properly secured joists to transfer load back to the deck’s main structure. Using hurricane ties, joist hangers with structural screws, or through-bolts ensures long-term strength, especially in high-wind or heavy-load conditions.

Pro Tip: Trex Protect butyl-based tape seals around your fastener sites to keep water out and your fasteners in.

Design and Construction Considerations

A well-built cantilever deck requires more than just knowing the overhang limits. Before you start construction, you’ll need to consider joist attachment, reinforcement, beam placement, uplift prevention, and material selection—all of which impact its long-term stability.

Joist Attachment and Reinforcement

Joists extending beyond the last support must be properly secured to prevent deflection and uplift. Typically, this means using double joists or blocking where the cantilevered section meets the main deck, ensuring a strong transition point. In high-wind areas, hurricane ties or structural connectors can add extra security. The back span of the joists also plays a role—if the joists don’t extend far enough back into the deck, the cantilever can flex too much or even lift at the attachment point.

Beam Placement and Load Considerations

The location of the support beam significantly affects how much weight the cantilever can handle. A beam positioned farther from the cantilever end increases overall strength, while a beam set too close can create excessive stress on the joists. If a beam itself is cantilevered past the posts, additional bracing or reinforcement may be required.

Preventing Uplift and Ensuring Stability

Cantilevered decks, especially those with longer overhangs, can experience uplift forces if the back span is too short, causing joists to lift at their attachment point. Securing joists within the deck frame counterbalances this force, but additional bracing or hardware may be needed based on load conditions and wind exposure.

Strong ledger board attachment also helps prevent uplift and maintain deck safety. Use thru-bolts or lag screws and apply flashing like Trex Seal Ledger and Sub-Ledger Tape to prevent moisture damage and separation over time. I recommend hurricane ties or structural connectors for extra reinforcement in high-wind areas.

Safety of Cantilever Decks

Cantilever decks require careful engineering and ongoing maintenance to remain structurally sound over time. Because part of the deck extends beyond its last support point, attachment points and structural connections must be secure to prevent movement, sagging, or failure, while the deck’s components must meet building code requirements for long-term safety.

Key safety concerns include:

• Structural Collapse – Overloading or poor construction can cause a cantilevered section to fail. That’s why I always recommend working with an experienced builder on cantilever decks. They’ll know how to size joists, reinforce connections, and calculate back-span requirements to prevent excessive deflection (downward bending with weight). As I’ve seen myself, even a small miscalculation can lead to a noticeable sag over time.
• Water Damage – Without proper sealing, flashing, and drainage, moisture can weaken cantilevered joists, leading to rot and structural deterioration. Applying waterproofing tape like Trex Protect on joists and using corrosion-resistant fasteners helps prevent issues.
• Weather Impact – Strong winds and heavy snow loads add stress to cantilevered sections, increasing the risk of uplift or sagging. Proper reinforcement with hurricane ties, lateral bracing, or additional anchoring can provide stability in extreme conditions.

Regular inspections and maintenance are key to preventing these issues. Checking for loose fasteners, moisture damage, and joist deflection can help catch problems early before they lead to costly repairs or dangerous failure. For more on long-term performance, check out this guide on the lifespan of a deck.

Conclusion

I’ve seen firsthand how a well-built cantilever deck can transform an outdoor space—creating a cleaner, more open design while keeping construction efficient. But success depends on more than just extending joists. Careful planning, structural reinforcement, and regular inspections keep it safe and long-lasting. Done right, it’s not just an extension of your deck— it’s a standout feature that enhances both your home and how you enjoy your outdoor space.
