AAMA 711-13 COMPLIANT
Seals the gap between the ledger board and the substructure
Self-Adhering tape creates a waterproof barrier
Simple Installation Process

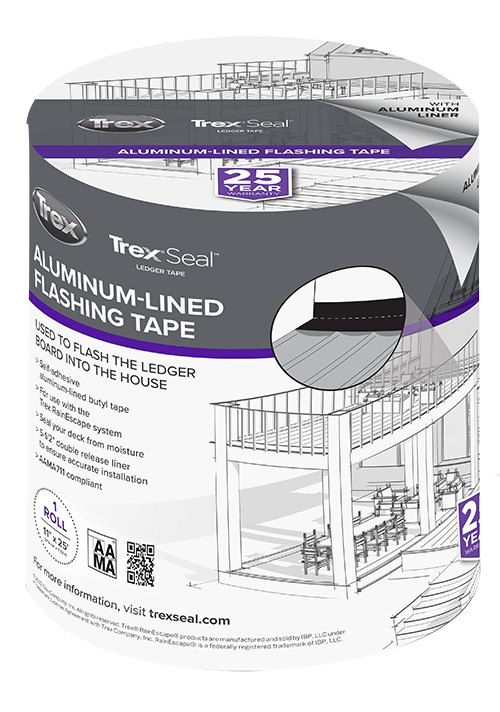

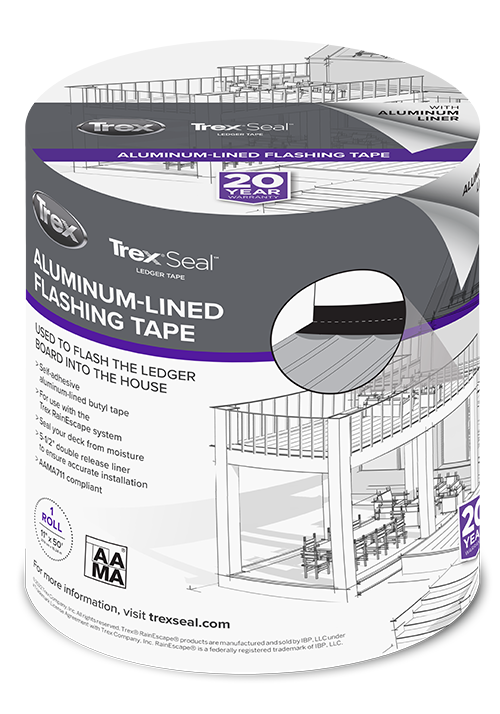

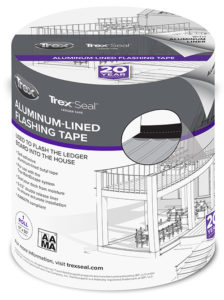

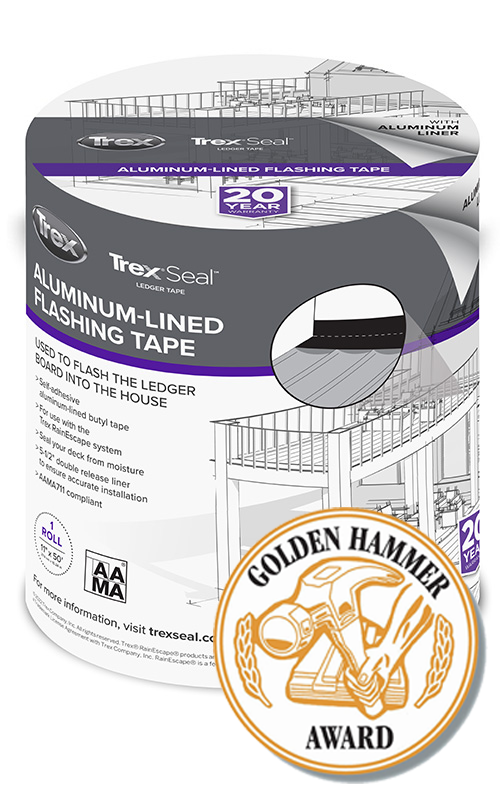

What is Trex Seal?
-
11” wide self-adhering butyl flashing tape with an aluminum liner
-
It helps to prevent deck failure by sealing the gaps between the house and the substructure
-
It creates a waterproof barrier that moisture-proofs the area between the ledger board and the deck


Why Trex Seal?
-
A superior alternative to traditional ledger flashing
-
Waterproof protection as opposed to water resistance
-
Seals any gaps between the ledger board and the substructure
-
Convenient 5-1/2″ double release liner to ensure accurate installation
-
AAMA 711-13 Compliant
-
Backed by a 25-year warranty
- Two-time award winner recognized for innovative performance in ledger protection
Easy Installation
When Installing With the Trex RainEscape System

- Install the Trex RainEscape system.
- Mark a 5-1/2″ line above the ledger board under the house wrap.
- Fold the Trex Seal Ledger Tape in half. Remove one of the release liners. Press to seal against the vertical surface at the 5-1/2″ line.
- Once the vertical surface is attached, remove the second release liner, unfold the Trex Seal Ledger Tape, and press firmly against the Trex RainEscape system.
Use Along With Trex Protect
-
Mark a 5-1/2″ line above the ledger board under the siding.
-
Fold the Trex Seal Ledger Tape in half. Remove one of the release liners. Press to seal against the vertical surface.
-
Once the vertical surface is attached, remove the second release liner, unfold the Trex Seal Ledger Tape, and press firmly against the ledger.
-
With a utility knife cut along each joist side and fold the tabs down. Firmly press the cut tabs against the ledger.

Step-by-Step Installation Instructions
Resources
Testimonials
Metal flashing doesn’t self-seal and therefore leaks. The pro of metal is that it is inexpensive, but many county codes no longer allow it because it leaks. Trex Seal flashing tape is better for waterproofing because it self seals. Trex Seal is designed specifically for deck installations, both in its function and size.
Ed Pacylowski
ProBuilt Construction
Metal Flashing is easier to install, but less effective. Trex Seal tape is a bit harder to install but a more efficient sealant.
Tyler Moody
Tybuild Construction
Trex Seal is a more complete seal from water damage.
Jonathan Moeller
Colorado Custom Covers and Decks
Once you install Trex Seal, that’s it! It is a 100% waterproof connection without worry! Trex Seal Ledger Tape is the next generation of ledger flashing. The aluminum-lined butyl based flashing tape makes the use of traditional metal bent flashing obsolete! Trex Seal will protect your investment in your outdoor living space, and more importantly, it will protect your home against water damage!
Brett Smith
Dura Contracting, Inc.
